Sku: OV-45-Z-LK353.a

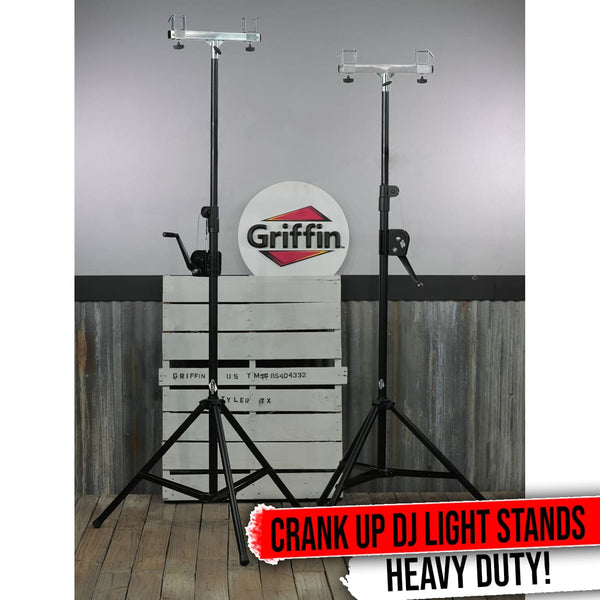

Truss Crank Stands By Griffin | DJ Lighting Package with Stage Light Stands

The Griffin Triangle Crank Up Speaker Stand/Truss System is exceptionally ideal for the busy roving lifestyle of a mobile DJ and/or the up-and-coming band that is always on the move to the next gig! It features an easy-to-use hand crank, steel cable gear system to hoist heavy speakers or your truss with lighting to heights from 60 inches to 114 inches with ease. This pair of truss lighting crank stands have 2 stages of interlocking poles for height adjustments and come with adjustable T-adapters that fit all standard triangle or square truss sizes. Best of all, these DJ crank speaker and lighting truss stands feature legs that retract and fold up effortlessly for efficient transport. (Truss segments sold separately.)

Crank Up Truss Stand Specifications
  • Adjustable height from 60 inches to 114 inches
  • Diameter of main shaft pipe is 45 mm (1 3/4")
  • Diameter of top shaft pipe is 35 mm
  • Length of each leg on tripod is 34 inches
  • T-Adapter-Overall Length: 17 3/8"
  • T-Adapter-Adjustable Latches Width: Slides  5.5" wide (min) to 14.5" wide (Max) (on latch center)
  • T-Adapter-Horizontal Square Support Pipe: 1 5/8" x 1 5/8"
  • Weight capacity load is 200 pounds
  • Gross weight: 40 pounds per truss crank stand (80 Pounds total)
  • Total Product Weight: 65 pounds
  • Total shipping Weight: 72 pounds
